Massey Ferguson MF 240 Tractor Price Specs Overview
Do you want to buy a Massey Ferguson 240 Tractors Model and wants to know about Mileage, Reviews for working on a Farm? Then Relax, We provide all the information about the Massey Tractors. Through which, you can buy a new tractor with good configuration. You got information about it from our site. Massey Ferguson 240 are also available with loader. It is most economical in 47 HP (Horse Power).
Massey Ferguson 240 Tractors Specifications
| KEY SPECIFICATIONS | |
| Make | Perkins |
| Type | Diesel |
| Model | MF 240 |
| ENGINE | |
| No. of Cylinders | 3 |
| Direct Injection | 91.44 mm (3.6 in) |
| Bore | 127.0 mm (5.0 in) |
| Compression RatioStroke | 16.5:1 |
| Capacity | 2.5 Litre (152.7 Cu. Ins.) |
| Starting Aid | Thermostat |
| Cooling | Water |
| Air Cleaner | Oil Bath |
| Air pre-cleaner | Over-bonnet |
| PERFORMANCE | |
| Engine HP @ 2250 RPM | 50 (BS)* |
| Max. Torque @ 1350 RPM | 173.5 Nm (128 Lbf. ft.) |
| CLUTCH | |
| Type | Dual |
| Diameter | 254 x 305 mm (10 x 12 in) |
| TRANSMISSION | |
| No. of Gears | 8 Forward + 2 Reverse |
| Min/Max Road Speeds | 1.62/30.00 km per hour |
| HYDRAULICS | |
| Type | Draft Control |
| Constant Pumping | 16 liters/min. |
| Max. Output | (3.52 lmp.gal/min) |
| Max. Lift Force | 1415 Kg (3120 lbs.) |
| At Lower link ends, | Category 1 & 2 |
| 3 - Point Linkage | Interchangeable Balls |
| POWER TAKE OFF (PTO) | |
| Type | Live PTO |
| No. of Splines | 6 |
| Shaft Diameter | 35 mm (1.375 in) |
| Engine RPM | 540 RPM @ 1789 |
| P.T.O HP @ rated Engine Speed | 44 hp* |
| P.T.O HP @ 540 RPM | 39 hp* |
| BRAKES | |
| Type | Oil Board Drum Brakes Independent or locked together |
| Dimensions | 355 mm x 50 mm (14 in x 2 in) |
| TYRES | |
| Front | 6.00 - 16 (6PR) Pressed Wheels (4.5 x 16 Rim) |
| Rear | 12.4/11 - 28 (6PR) Pressed Wheels |
| DIMENSIONS | |
| Wheel Base | 5.56 m (219 in.) |
| Overall Length | 3.21m (126 in) |
| Overall Width | 1626 mm (64 in) |
| Overall Height | 2165 mm (85.25 in) |
| Turning Circle | 6.20 m (244 in.) |
| Ground Clearance | Clutch Housing - 338 mm (13.31 in.) Front Axle - 531 mm (20.9 in.) Rear Axle - 555 mm (21.85 in.) |
| WEIGHTS | |
| Front Axle | 695 Kgs (1532 lbs.) |
| Rear Axle | 945 Kgs (2083 lbs.) |
| Total | 1640 Kgs (3615 lbs.) |
| CAPACITIES | |
| Fuel Tank | 52 litres |
| Engine Sump | 6.8 litres |
| Hydraulics | 32 litres |
| Steering Box | 0.9 litres |
| Engine Cooling | 10.2 litres |
| ELECTRICALS | |
| Voltage | 12 V, Negative Earth |
| Battery | 96 Amp. Hour |
| Alternator | 32 Amp |
| Starter | 45 Amp |
| OPTIONAL EQUIPMENT | |
| Range of Farm Implements | |
| PTO Pulley | |
| 9-Hole Draw Bar | |
| Stays | |
| Fiber Glass Top Sun Canopy with Frame | |
| Ground PTO | |
| Front End Weights | |
| Rear View Mirror | |
| Hydraulic Spool Valves | |
| Swinging Draw Bar | |
| STANDARD FITTINGS | |
| More Comfortable Spring Suspension Seat | |
| Plough Lamp, Visible Number Plate | |
| Warning Lights | |
| Vertical Exhaust | |
| Hand and Foot Accelerator | |
| Differential Lock | |
| Start Switch | |
| Adjustable Top Link | |
| Rear PTO Shield | |
| Horn | |
| Tools Box | |
| Standard Toolkit | |
| Over Bonnet Pre-cleaner | |
| Indicator Lights | |
| Stabilizer Chains | |
| Front end Weight Frame | |
Farmers need this tractor because they will be satisfied with this model. It should give you a better performance from other tractors. It has a Reciprocating Ferguson Pump. Many functions provided by the Tractors Massey Ferguson 240 like Draft Control, Position Control, Constant pumping. These make distinct the Tractors MF 240 from other tractors. It is well-proven Tractor in the loading work. It provides 127mm stroke.

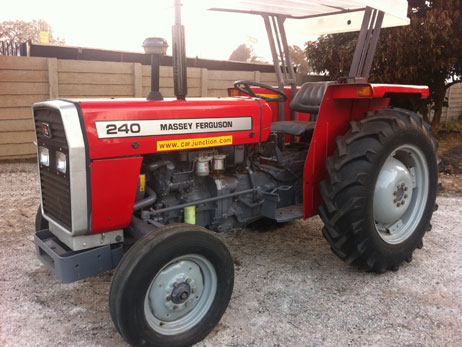

it has many features and different from other Massey Ferguson Tractors. It has 3 cylinders Perkins direct injection. It has 8-speed transmission. It has been 12-inch dual clutch. It is model farming, adaptable and all-rounder Massey Ferguson tractors. It has spring suspension. It has 47.5 Liters Fuel Capacity. It contains manual steering. You can see some photo of MF 240 Tractors which are available at here
Configuration table is given below for the Massey Ferguson 240 Tractors
We wholeheartedly hope You will be admired from this site and we hope you got satisfied through this informative article. If you want to buy this Massey Ferguson 240 tractors which provide you good mileage and strength and more features. There are many types of equipment provided by the Massey Ferguson Company for MF240 Tractors.
